| Marca | Oem
|
| Part Number | H610MHP VER.6.1
|
| CPU | Support for 12th/ 13th/ 14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list. |
| Chipset | Intel H610 |
| Memoria | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Support Intel Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list. |
| Gráficos | VGA x 1
HDMI x 1 |
| Audio | ALC897
7.1 Channels, High Definition Audio |
| LAN | Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| Ranuras de Expansión | INTEL 12th/13th/14th Processors
1 x PCIe 4.0 x16 Slot (x16 mode) Intel H610 Chipset 1 x PCIe 3.0 x1 Slot * Specifications vary by CPU types |
| Conectores | 4 x SATA III Connectors (6Gb/s)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header |

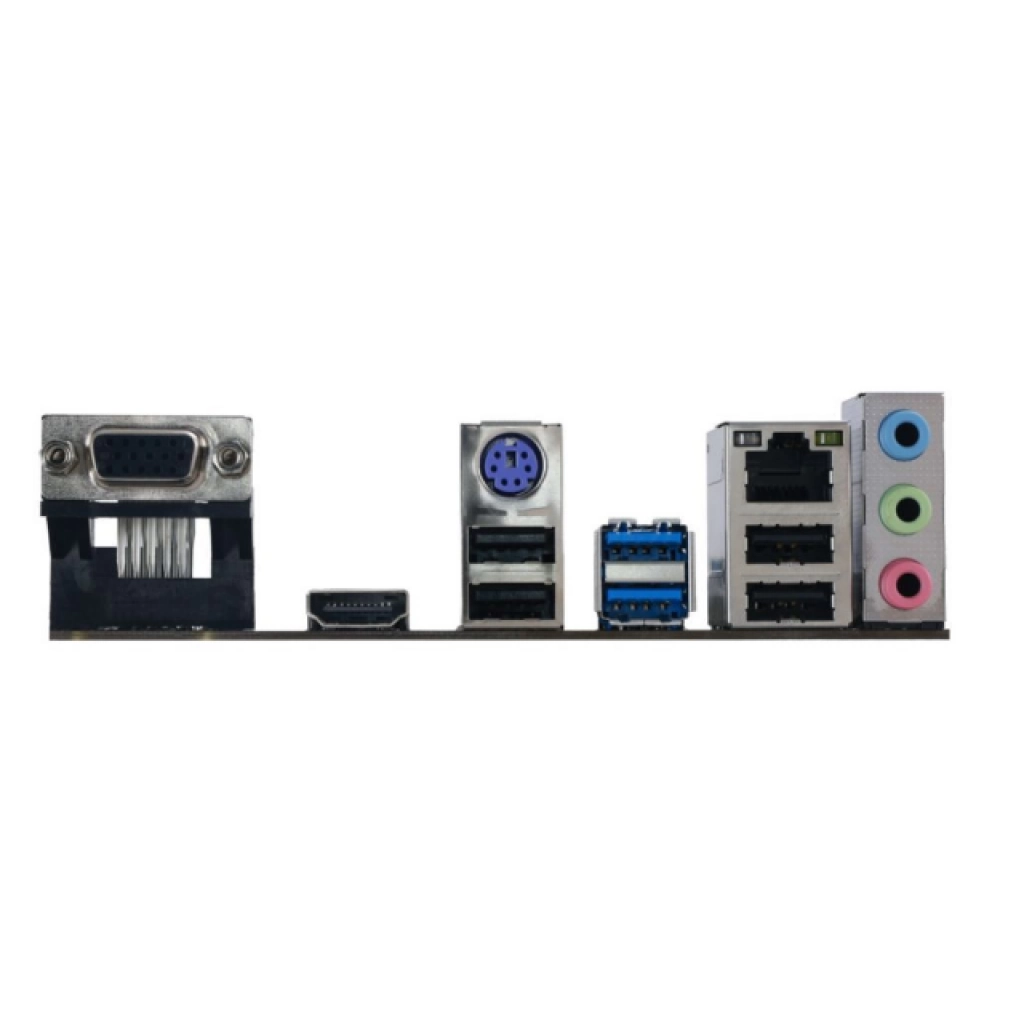

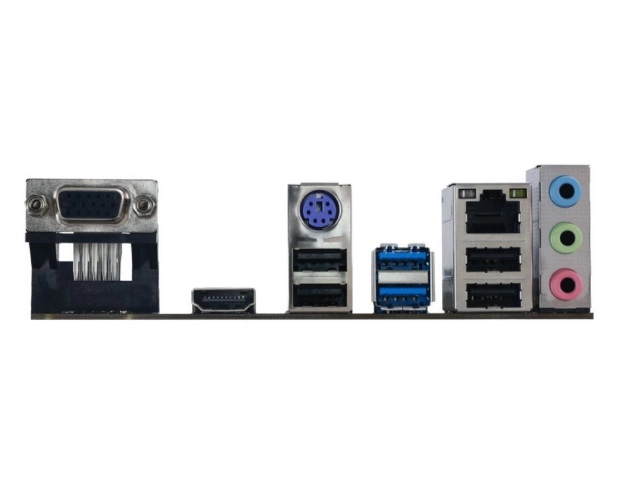

| Panel trasero E/S | 1 x PS/2 Keyboard/Mouse Port
1 x HDMI 1 x VGA Port 2 x USB 3.2 (Gen1) ports 4 x USB 2.0 ports 1 x LAN port 3 x Audio Jack |
| Formato | Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L ) |
| Socket | 1700 |
| Almacenamiento | Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports
Intel H610 Chipset 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA): Supports M.2 Type 2242 /2260 /2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) & SATA lll (6Gb/s) SSD 4 x SATA III Connector (6Gb/s) * Specifications vary by CPU types |
| RAID | No |
| USB | 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers) |
| Código | MOT65 |
